Deep Learning of Reaction Barrier Heights with ChemTorch¶
Disclaimer
This community notebook was kindly supplied by Anton Zamyatin and Esther Heid for OPI version 1.0.0.
This two-part tutorial showcases how ORCA integrates into downstream deep learning workflows by serving as a data source training and evaluation.
First, we will show how to calculate the barrier height of a chemical reaction using ORCA with the ORCA Python inferface (OPI).
Second, we use the ChemTorch framework to train and evaluate a graph neural network (GNN) on a curated subset of the popular RGD1 dataset which contains precomputed barrier heights.
The term barrier height refers to the energy difference between reactant and transition state (TS).
Part I: Obtaining Barrier Heights via ORCA/OPI¶
The first part of this tutorial consists of six steps:
Import Dependencies
Define Base Directory
Pick a Reaction
Setup and Run Calculations
Visualize the TS and IRC
Compute the Barrier Height
Step 1: Import Dependencies¶
We start by importing the modules needed for:
Interfacing with ORCA input/output
Numerical calculations and data handling
Plotting results
You might first need to install the additional required packages via
pip install py3Dmol rdkit matplotlib pandas
from pathlib import Path
import shutil
# > OPI imports for performing ORCA calculations and reading output
from opi.core import Calculator
from opi.output.core import Output
from opi.input.structures.structure import Structure
from opi.input.arbitrary_string import ArbitraryStringPos
from opi.input.blocks import BlockNeb, BlockScf
from opi.input.simple_keywords import SimpleKeyword, BasisSet, Scf, Dft, Task, Neb, DispersionCorrection, Wft
# > for visualization of molecules
from rdkit import Chem
from rdkit.Chem import Draw
import py3Dmol
import matplotlib.pyplot as plt
# > Pandas for data handling
import pandas as pd
Step 2: Define Base Directory¶
We will create a RUN folder which will serve as the base directory for all ORCA calculations.
# > Calculation is performed in `RUN`
base_dir = Path("RUN")
base_dir.mkdir(exist_ok=True)
Step 3: Pick a Reaction¶
For this example, we will remove a datapoint from the RGD1 dataset and calculate its barrier height from scatch. We chose the tautomerization of acetone.
We will use the reactant and product geometries provided in the RGD1 dataset as a starting point for our calculations. Please refer to the original paper for a detailed explenation of how these structures were obtained.
rxn_smiles = "[C:1]([C:3]([C:2]([H:8])([H:9])[H:10])=[O:4])([H:5])([H:6])[H:7]>>[C:1]([C:3](=[C:2]([H:8])[H:9])[O:4][H:10])([H:5])([H:6])[H:7]"
r_smiles, p_smiles = rxn_smiles.split(">>")
params = Chem.SmilesParserParams()
params.removeHs = False
r_mol = Chem.MolFromSmiles(r_smiles, params=params)
p_mol = Chem.MolFromSmiles(p_smiles, params=params)
r_xyz = """\
10
C -1.460860000000000 -0.144010000000000 -0.053220000000000
C 1.050380000000000 -0.695950000000000 0.102060000000000
C -0.033170000000000 0.331050000000000 -0.087970000000000
O 0.238150000000000 1.516350000000000 -0.275750000000000
H -2.013860000000000 0.310400000000000 -0.879410000000000
H -1.910310000000000 0.138980000000000 0.901700000000000
H -1.508990000000000 -1.230020000000000 -0.166960000000000
H 1.412030000000000 -1.023800000000000 -0.875360000000000
H 0.669670000000000 -1.555760000000000 0.659270000000000
H 1.870170000000000 -0.255950000000000 0.676240000000000
"""
p_xyz = """\
10
C -1.447246410000000 -0.119824230000000 0.000001190000000
C 0.825515320000000 -1.164474080000000 0.000015810000000
C 0.048387710000000 -0.090653610000000 -0.000104420000000
O 0.534209710000000 1.184537660000000 0.000015420000000
H -1.822704290000000 0.402724090000000 -0.877993030000000
H -1.822288580000000 0.399353360000000 0.880185840000000
H -1.811964100000000 -1.141503600000000 -0.001665260000000
H 1.900576660000000 -1.090080000000000 0.000093490000000
H 0.410348040000000 -2.153410380000000 0.000030700000000
H 1.498440620000000 1.164676240000000 0.000145300000000
"""
def visualize_molecules_2d_side_by_side(mol1, mol2, title1="Molecule 1", title2="Molecule 2"):
"""Display 2D molecular structures side by side."""
fig, (ax1, ax2) = plt.subplots(1, 2, figsize=(12, 5))
# Remove hydrogens for cleaner visualization
mol1_no_h = Chem.RemoveHs(mol1)
mol2_no_h = Chem.RemoveHs(mol2)
# Create drawing options
opts = Draw.rdMolDraw2D.MolDrawOptions()
opts.addAtomIndices = False # Hide atom numbering
opts.addStereoAnnotation = False # Hide stereo annotations
# Generate 2D images with custom options
img1 = Draw.MolToImage(mol1_no_h, size=(400, 400), options=opts)
img2 = Draw.MolToImage(mol2_no_h, size=(400, 400), options=opts)
# Display images
ax1.imshow(img1)
ax1.set_title(title1, fontsize=14, pad=10)
ax1.axis('off')
ax2.imshow(img2)
ax2.set_title(title2, fontsize=14, pad=10)
ax2.axis('off')
plt.tight_layout()
plt.show()
def visualize_molecule(xyz_string: str, name: str=None):
"""
Visualize a molecule from its XYZ string using py3Dmol.
Args:
xyz_string: XYZ format string of the molecule
name: Name for the molecule (used as visualization title)
"""
if name:
print(f"--- {name.title()} Structure ---")
view = py3Dmol.view(width=400, height=400)
view.addModel(xyz_string, 'xyz')
view.setStyle({}, {'stick': {'radius': 0.15}, 'sphere': {'scale': 0.25}})
view.setBackgroundColor('white')
view.zoomTo()
view.show()
def save_molecule(xyz_string: str, name: str, working_dir: Path):
"""
Save the XYZ string to a file in the specified working directory.
Args:
xyz_string: XYZ format string of the molecule
name: Name for the molecule (used for filename)
working_dir: Directory to save the XYZ file
"""
xyz_file = working_dir / f"{name}.xyz"
with open(xyz_file, "w") as f:
f.write(xyz_string)

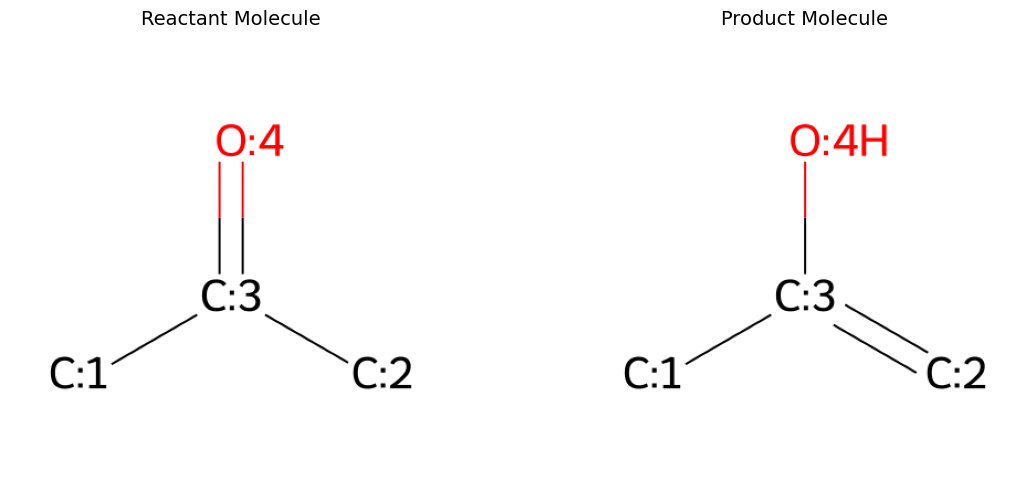

visualize_molecules_2d_side_by_side(r_mol, p_mol, "Reactant Molecule", "Product Molecule")
visualize_molecule(r_xyz, "reactant")
visualize_molecule(p_xyz, "product")
save_molecule(r_xyz, "reactant", base_dir)
save_molecule(p_xyz, "product", base_dir)
--- Reactant Structure ---
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
--- Product Structure ---
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
Step 4: Setup and Run Calculations¶
We will run three kinds of calculations:
First, we optimize the geometries of our initial reactant and product structures.
Then we start a nudge elastic band (NEB) TS search starting from the optimized reactant and product geometries.
Finally, we calculate the intrinsic reaction coordinate (IRC) from the found TS. This is not strictly necessary to calculate the barrier height of the reaction but it allows for a nice visualization of the reaction.
For all calculations, we additionally perform vibrational frequency calculations to obtain thermochemistry information including the single point energies needed to determine the barrier height of the reaction.
RGD1 was obtained on a B3LYP-D3/TZVP level of theory and thight SCF. If you would like to reproduce these results, use
SIMPLE_KEYWORDS = [
Dft.B3LYP, # > B3LYP-D3 method
DispersionCorrection.D3, # > D3
BasisSet.TZVP, # > TZVP basis set
Task.FREQ, # > Vibration frequency calculation to get thermochemistry
Scf.TIGHTSCF, # > tight SCF
]
(the commented-out part below). The NEB search will take a few hours then. If you would like to make a dummy calculation with a much lower level of theory, you can use HF/STO-3G as detailed below. The NEB search will then complete in a few minutes.
# > Define simple keywords for the ORCA calculation, here with a lower level of theory
SIMPLE_KEYWORDS = [
Wft.HF, # > Hartree-Fock method
BasisSet.STO_3G, # > STO3G basis set
Task.FREQ, # > Vibration frequency calculation to get thermochemistry
]
'''# > Define simple keywords for the ORCA calculation, consistent with RGD1. Uncomment this part if you like.
SIMPLE_KEYWORDS = [
Dft.B3LYP, # > B3LYP method
DispersionCorrection.D3, # > D3 correction
BasisSet.TZVP, # > TZVP basis set
Task.FREQ, # > Vibration frequency calculation to get thermochemistry
Scf.TIGHTSCF, # > tight SCF
]
'''
# > Set number of cores for the calculation
NCORES = 2
# > Define setup functions for all three calculator types
def setup_opt_calc(basename : str, xyz_file: str, base_dir: Path, ncores: int, sk_list: list[SimpleKeyword]) -> Calculator:
# > Setup subdirectory for geometry optimization calculations
working_dir = base_dir / "geometry_optimization"
working_dir.mkdir(parents=True, exist_ok=True) # Ensure the subdirectory exists
# > Specify geometry optimization as task
sk_list = sk_list.copy()
sk_list.append(Task.OPT)
# > Set up a Calculator object
calc = Calculator(basename=basename, working_dir=working_dir)
# > Assign structure to calculator
calc.structure = Structure.from_xyz(base_dir / xyz_file)
# > Add simple keywords to calculator
calc.input.add_simple_keywords(*sk_list)
# > Set the number of CPUs for the calculation
calc.input.ncores = ncores
return calc
def setup_neb_calc(basename: str, r_xyz_file: str, p_xyz_file: str, base_dir: Path, ncores: int, sk_list: list[SimpleKeyword]) -> Calculator:
working_dir = base_dir / "nudged_elastic_band"
working_dir.mkdir(parents=True, exist_ok=True)
# > Copy the product XYZ file to the calculation directory so ORCA can find it
p_xyz_path = base_dir / p_xyz_file
dest_path = working_dir / p_xyz_path.name
shutil.copy2(p_xyz_path, dest_path)
sk_list = sk_list.copy()
sk_list.append(Neb.NEB_TS)
calc = Calculator(basename=basename, working_dir=working_dir)
calc.structure = Structure.from_xyz(base_dir / r_xyz_file)
# > Define input block for product structure
calc.input.add_blocks(BlockNeb(neb_end_xyzfile=p_xyz_path.name))
# > Add options to the calculator
calc.input.add_simple_keywords(*sk_list)
calc.input.ncores = ncores
return calc
def setup_irc_calc(basename: str, xyz_file: str, base_dir: Path, ncores: int, sk_list: list[SimpleKeyword]) -> Calculator:
working_dir = base_dir / "intrinsic_reaction_coordinate"
working_dir.mkdir(parents=True, exist_ok=True) # Ensure the subdirectory exists
sk_list = sk_list.copy()
sk_list.append(Neb.IRC)
calc = Calculator(basename=basename, working_dir=working_dir)
calc.structure = Structure.from_xyz(base_dir / xyz_file)
calc.input.add_blocks(BlockScf(maxiter=200))
calc.input.add_simple_keywords(*sk_list)
calc.input.ncores = ncores
return calc
def run_calc(calc: Calculator) -> Output:
# > Write the ORCA input file
calc.write_input()
# > Run the ORCA calculation
print("Running ORCA calculation ...", end="")
calc.run()
print(" Done")
# > Get the output object
output = calc.get_output()
return output
def check_and_parse_output(output: Output):
# > Check for proper termination of ORCA
status = output.terminated_normally()
if not status:
# > ORCA did not terminate normally
raise RuntimeError(f"ORCA did not terminate normally. Please check {output.basename}.out file")
else:
# > ORCA did terminate normally so we can parse the output
output.parse()
# > Now check for convergence of the SCF
if output.results_properties.geometries[-1].single_point_data.converged:
print(f"{output.basename}: SCF CONVERGED")
else:
raise RuntimeError("SCF DID NOT CONVERGE")
First, run the geometry optimization:
r_opt_calc = setup_opt_calc("reactant", "reactant.xyz", base_dir, ncores=NCORES, sk_list=SIMPLE_KEYWORDS)
r_opt_out = run_calc(r_opt_calc)
check_and_parse_output(r_opt_out)
Running ORCA calculation ... Done
reactant: SCF CONVERGED
p_opt_calc = setup_opt_calc("product", "product.xyz", base_dir, ncores=NCORES, sk_list=SIMPLE_KEYWORDS)
p_opt_out = run_calc(p_opt_calc)
check_and_parse_output(p_opt_out)
Running ORCA calculation ... Done
product: SCF CONVERGED
Then run nudege elastic band search on the optimized reactant and product geometries (this will take a few minutes with HF/STO-3G and several hours for B3LYP-D3/TZVP):
neb_ts_calc = setup_neb_calc("ts", "geometry_optimization/reactant.xyz", "geometry_optimization/product.xyz", base_dir, ncores=NCORES, sk_list=SIMPLE_KEYWORDS)
neb_ts_out = run_calc(neb_ts_calc)
check_and_parse_output(neb_ts_out)
Running ORCA calculation ... Done
ts: SCF CONVERGED
Finally, run the IRC calculation for visualization purposes:
irc_calc = setup_irc_calc("irc", "nudged_elastic_band/ts.xyz", base_dir, ncores=NCORES, sk_list=SIMPLE_KEYWORDS)
irc_out = run_calc(irc_calc)
check_and_parse_output(irc_out)
Running ORCA calculation ... Done
irc: SCF CONVERGED
Step 5: Visualize TS and IRC¶
ts_xyz_file = base_dir / "nudged_elastic_band" / "ts.xyz"
with open(ts_xyz_file, "r") as f:
ts_xyz = f.read()
visualize_molecule(ts_xyz, "transition state")
--- Transition State Structure ---
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
def animate_trajectory(trajectory_file: Path):
"""
Animate a trajectory from a multi-frame XYZ file using py3Dmol.
Args:
trajectory_file: Path to the XYZ trajectory file
name: Name for the animation
"""
with open(trajectory_file, "r") as f:
trajectory_content = f.read()
view = py3Dmol.view(width=600, height=400)
view.addModelsAsFrames(trajectory_content, 'xyz')
view.setStyle({}, {'stick': {'radius': 0.15}, 'sphere': {'scale': 0.25}})
view.setBackgroundColor('white')
view.animate({'loop': 'forward'})
view.zoomTo()
view.show()
trj_file = base_dir / "intrinsic_reaction_coordinate" / "irc_IRC_Full_trj.xyz"
animate_trajectory(trj_file)
3Dmol.js failed to load for some reason. Please check your browser console for error messages.
Step 6: Calculate the Barrier Height¶
We calculate the barrier height as the energy difference between reactant and transition state. We will use electron energy since it will also be used for training in Part II.
The energies can be found in the thermochemistry information of the ORCA output which was obtained via the addtional vibrational frequency calculations.
E_r = r_opt_out.results_properties.geometries[-1].thermochemistry_energies[0].elenergy
E_p = p_opt_out.results_properties.geometries[-1].thermochemistry_energies[0].elenergy
E_ts = neb_ts_out.results_properties.geometries[-1].thermochemistry_energies[0].elenergy
delta_E_act = E_ts - E_r
delta_E_rp = E_p - E_r
# > Convert to kcal/mol
HARTREE_TO_KCAL_MOL = 627.509
delta_E_act_kcal = delta_E_act * HARTREE_TO_KCAL_MOL
delta_E_rp_kcal = delta_E_rp * HARTREE_TO_KCAL_MOL
print(f"""
ELECTRON ENERGY (E):
Activation: {delta_E_act_kcal:.6f} kcal/mol, {delta_E_act:.6f} Eh
Reaction: {delta_E_rp_kcal:.6f} kcal/mol, {delta_E_rp:.6f} Eh
""")
ELECTRON ENERGY (E):
Activation: 106.655528 kcal/mol, 0.169967 Eh
Reaction: 19.588445 kcal/mol, 0.031216 Eh
Now, the HF/STO-3G values are of course quite off. With B3LYP-D3/TZVP, we obtain 67.935952 kcal/mol. The RGD1 dataset reports an barrier height of 68.35608500000312 kcal/mol (electron energy) for this reaction.
Given that the RGD1 dataset was constructed using a slightly different approach a small deviation of approximately 0.3 kcal/mol is tolerable.
Now, we will save the reaction SMILES to a CSV file for later use. We will also overwrite delta_E_act_kcal to the value at the correct level of theory, since we will compare machine learning model predictions to this value later.
#Overwrite target to correct level of theory (this is unnecessary if you used to correct level of theory above)
delta_E_act_kcal = 67.935952
# > Save the smiles of the reaction to a CSV file
import pandas as pd
data = {
"smiles": [rxn_smiles],
"ea": [delta_E_act_kcal]
}
df = pd.DataFrame(data)
df.to_csv("QM_data.csv", index=False)
df
| smiles | ea | |
|---|---|---|
| 0 | [C:1]([C:3]([C:2]([H:8])([H:9])[H:10])=[O:4])(... | 67.935952 |
To build a full machine learning dataset we would repeat this for many more reactions. Of course, dataset construction also involves other considerations like chemical space coverage and dataset curration. However, these topics are beyond the scope of this tutorial.
Part II: Training a GNN to Predict Activation Free Energies via ChemTorch¶
The second part consists of four steps:
Download a small subset of the RGD1 dataset.
Install ChemTorch
Train and Evaluate GNN via ChemTorch CLI.
Use Model to Predict Activation Free Energy
The remainder of this tutorial will run on the command line, please navigate to the folder where you are currently running this tutorial (and thus QM_data.csv and QM_data_precomputed.csv are already located), and run the commands below on the command line in this folder).
Step 1: Download the RGD1 Dataset (a subset)¶
Since for a tutorial you cannot run hundreds of calculation, we will now donwload a subset of RGD1 to use in our machine learning model instead of the QM_data.csv above which we just made. It is exactly the same information, just about 15k reactions instead of the only 1 from above.
wget https://raw.githubusercontent.com/heid-lab/reaction_database/main/data/rgd1/barriers/filtered.csv -O QM_data_precomputed.csv
You can inspect the QM_data_precomputed.csv to see it is just more reactions than above, but the exact same format.
Step 2: Install ChemTorch¶
To begin our ML workflow, clone and install ChemTorch following the official installation instructions or the command below (for GPU installation, please refer to the installation instructions). We recommend to set up a separate environment than for the first part of this tutorial.
git clone -b tutorial/opi_orca https://github.com/heid-lab/chemtorch.git && \
cd chemtorch && \
conda deactivate && \
conda create -n chemtorch python=3.10 && \
conda activate chemtorch && \
pip install rdkit numpy==1.26.4 scikit-learn pandas && \
pip install torch && \
pip install hydra-core && \
pip install torch_geometric && \
pip install torch_scatter torch_sparse torch_cluster torch_spline_conv -f https://data.pyg.org/whl/torch-2.5.0+cpu.html && \
pip install wandb && \
pip install ipykernel && \
pip install -e .
Step 3: Train and Evaluate GNN via ChemTorch CLI¶
In this section, we train a Directed Message Passing Neural Network (DMPNN)—a widely used GNN architecture for molecular property prediction. ChemTorch provides ready-to-use configuration files, including a complete pipeline for training DMPNNs on the RGD1 dataset.
🔗 For more models, representations, and datasets, visit the ChemTorch GitHub repository.
📚 To define your own GNNs or molecular representations, consult the ChemTorch documentation.
To use our own custom dataset QM_data_precomputed.csv, we can either set up our own configuration file, or use an existing one and overwrite the path to the dataset.
To use an existing one, run the following command from the chemtorch project root:
python chemtorch_cli.py +experiment=graph data_pipeline=rgd1 data_pipeline.data_source.data_path="../QM_data_precomputed.csv"
This tells ChemTorch to use the default graph learning configuration with the RGD1 data pipeline but use our own custom dataset specified via data_path.
Under the hood, this setup will convert each reaction SMILES to a condensed graph of reaction (CGR), train a DMPNN, track metrics of interest and save the best performing model parameters for later.
to the CLI as well as Weights & Biases which is a graphical user interface that can be accessed through the browser.
If you would like to make your own configuration file instead, an example is already included in your ChemTorch installation, and can be found in conf/experiment/opi_tutorial/training.yaml, so no need to create or change a file. Note that the important lines are setting the data_pipeline to rgd1, and data_pipeline/data_source/data_path to "../QM_data_precomputed.csv", just as above. To launch the training process with the config file, run
python chemtorch_cli.py +experiment=opi_tutorial/training
from the chemtorch project root (do not redo this if you already ran ChemTorch above).
Either way, the ChemTorch CLI will output
a link to a detailed real-time view of the ongoing run on Weights & Biases which can be accessed via the browser (can be disabled by setting
log=false),a progress bar, and
a summary of the run including the final training, validation and test metrics.
██████╗██╗ ██╗███████╗███╗ ███╗████████╗ ██████╗ ██████╗ ██████╗██╗ ██╗
██╔════╝██║ ██║██╔════╝████╗ ████║╚══██╔══╝██╔═══██╗██╔══██╗██╔════╝██║ ██║
██║ ███████║█████╗ ██╔████╔██║ ██║ ██║ ██║██████╔╝██║ ███████║
██║ ██╔══██║██╔══╝ ██║╚██╔╝██║ ██║ ██║ ██║██╔══██╗██║ ██╔══██║
╚██████╗██║ ██║███████╗██║ ╚═╝ ██║ ██║ ╚██████╔╝██║ ██║╚██████╗██║ ██║
╚═════╝╚═╝ ╚═╝╚══════╝╚═╝ ╚═╝ ╚═╝ ╚═════╝ ╚═╝ ╚═╝ ╚═════╝╚═╝ ╚═╝
...
Sanity Checking: | | 0/? [00:00<?, ?it/s]
Epoch 74: 100%|██████████| 271/271 [00:03<00:00, 77.02it/s, v_num=rnz2, train_loss=1.480, val_loss_step=28.70, val_loss_epoch=12.30]
Testing DataLoader 0: 100%|██████████| 16/16 [00:00<00:00, 125.13it/s]
────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
Test metric DataLoader 0
────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
test_loss_epoch 11.29045295715332
test_mae 4.308720588684082
test_rmse 6.559021949768066
────────────────────────────────────────────────────────────────────────────────────────────────────────────────────────
wandb: uploading history steps 1595-1697, summary, console lines 1-1
wandb:
wandb:
wandb: Run history:
wandb: epoch ▁▁▁▂▂▂▂▂▃▃▃▄▄▄▄▄▄▄▄▄▄▅▅▅▅▆▆▇▇▇▇▇▇▇▇█████
wandb: test_loss_epoch ▁
wandb: test_loss_step ▃█▃▄▃▄▃▆█▄▅▅▂▂▄▁
wandb: test_mae ▁
wandb: test_precompute_time ▁
wandb: test_rmse ▁
wandb: total_parameters ▁
wandb: train_loss █▇▃▃▂▂▂▂▂▂▂▂▂▁▂▂▁▁▁▁▁▂▁▁▂▁▁▂▁▁▁▂▂▁▁▂▂▁▁▂
wandb: train_precompute_time ▁
wandb: train_rmse █▆▆▅▅▄▄▄▃▃▃▃▃▃▂▂▂▂▂▂▂▂▂▂▂▂▁▁▁▁▁▁▁▁▁▁▁▁▁▁
wandb: trainer/global_step ▁▁▁▁▁▂▂▁▁▁▁▁▃▃▃▁▁▄▁▁▁▅▁▁▅▁▁▁▁▁▁▁▁▁▁█▁█▁▁
wandb: val_loss_epoch █▅▄▃▃▂▃▂▂▂▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁
wandb: val_loss_step █▃▃▃▂▃▂▂▃▃▂▂▁▂▄▂▂▂▂▂▁▂▂▂▁▁▁▂▁▁▂▂▁▂▄▂▁▂▂▁
wandb: val_rmse █▅▄▃▃▂▂▃▂▂▂▂▂▂▂▁▁▂▂▂▁▁▁▂▁▁▁▁▁▁▁▁▁▁▁▁▁▁▁▂
wandb:
wandb: Run summary:
wandb: epoch 75
wandb: test_loss_epoch 11.29045
wandb: test_loss_step 0.16354
wandb: test_mae 4.30872
wandb: test_precompute_time 2.78497
wandb: test_rmse 6.55902
wandb: total_parameters 305921
wandb: train_loss 2.91344
wandb: train_precompute_time 50.13324
wandb: train_rmse 4.08851
wandb: trainer/global_step 20325
wandb: val_loss_epoch 12.25211
wandb: val_loss_step 28.69574
wandb: val_rmse 6.85208
Step 4: Predict Barrier Height for Unseen Reaction¶
Now, we can load our trained model and use it to predict the barrier height of new reactions that aren't in the training dataset, for example the datapoint computed in Part I.
We will use the config file in conf/experiment/opi_tutorial/inference.yaml (shipped with the ChemTorch repo, no need to make this file again).
Overwrite the checkpoint path in the command directly, or replace the ckpt_path: "lightning_logs/rgd1/dmpnn/seed_0_YYYY-MM-DD_HH-MM-SS/checkpoints/epoch=XX-step=XXXXX.ckpt" with your actual log name from the training run in conf/experiment/opi_tutorial/inference.yaml. We will overide it so you don't need to open the file:
python chemtorch_cli.py +experiment=opi_tutorial/inference ckpt_path="lightning_logs/rgd1/dmpnn/seed_0_2025-08-13_10-28-40/checkpoints/epoch\=58-step\=15989.ckpt prediction_save_path="../predictions.csv"
When overriding ckpt_path in the CLI make sure to wrap the path in double quotes and escape = characters by plycing \ in front of them like we did.
Remember that the file path will be different for you!
Assuming that the chemtorch folder is located in the same folder as this notebook, then the predictions will be saved as predictions.csv in the the same folder.
██████╗██╗ ██╗███████╗███╗ ███╗████████╗ ██████╗ ██████╗ ██████╗██╗ ██╗
██╔════╝██║ ██║██╔════╝████╗ ████║╚══██╔══╝██╔═══██╗██╔══██╗██╔════╝██║ ██║
██║ ███████║█████╗ ██╔████╔██║ ██║ ██║ ██║██████╔╝██║ ███████║
██║ ██╔══██║██╔══╝ ██║╚██╔╝██║ ██║ ██║ ██║██╔══██╗██║ ██╔══██║
╚██████╗██║ ██║███████╗██║ ╚═╝ ██║ ██║ ╚██████╔╝██║ ██║╚██████╗██║ ██║
╚═════╝╚═╝ ╚═╝╚══════╝╚═╝ ╚═╝ ╚═╝ ╚═════╝ ╚═╝ ╚═╝ ╚═════╝╚═╝ ╚═╝
Predicting DataLoader 0: 100%|██████████| 1/1 [00:00<00:00, 8.18it/s]
Predictions saved to: /your/path/to/opi/docs/contents/notebooks/predictions.csv
Now we can load the prediction and compare it to the barrier height obtained from the ORCA calculation and the value reported by RGD1. Note that model training can differ between architectures (e.g. GPU vs CPU), so you might not get exactly the same numbers.
# > Load predictions from the CSF file
df = pd.read_csv("predictions.csv")
delta_E_act_kcal_predicted = df["prediction"].values[0]
rgd1_delta_E_act_kcal = 68.35608500000312 # > RGD1 value for the barrier height in kcal/mol
# > Calculate absolute errors
error_to_orca_calc = delta_E_act_kcal_predicted - delta_E_act_kcal
error_to_rgd1 = delta_E_act_kcal_predicted - rgd1_delta_E_act_kcal
# > Calculate relative errors
relative_error_to_orca_calc = error_to_orca_calc / delta_E_act_kcal
relative_error_to_rgd1 = error_to_rgd1 / rgd1_delta_E_act_kcal
print(f"""
PREDICTED BARRIER HEIGHT: {delta_E_act_kcal_predicted:.6f} kcal/mol
ERROR TO ORCA CALCULATION: {error_to_orca_calc:.6f} kcal/mol, {relative_error_to_orca_calc:.2%}
ERROR TO REPORTED VALUE IN RGD1: {error_to_rgd1:.6f} kcal/mol, {relative_error_to_rgd1:.2%}
""")
PREDICTED ACTIVATION ENERGY: 69.493736 kcal/mol
ERROR TO ORCA CALCULATION: 1.557785 kcal/mol, 2.29%
ERROR TO REPORTED VALUE IN RGD1: 1.137651 kcal/mol, 1.66%
